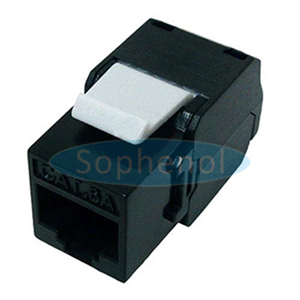

CAT6A UTP Keystone Jack 180 Degree Slim Type Black
CAT.6A UTP Keystone Jack 180 Degree Slim Type Black
Specifications:
• Housing: high temperature thermoplastic
• Shell: phosphor bronze protects against EMI/PFI interference
• Contact: phosphor bronze ,phosphor bronze with 3 to 50u” gold plate
• Available in CAT.5E or CAT.6 T568A/T568B wiring, meeting every cabling international requirement
• Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6mm
• Insertion life :MIN 750 matching recycles
• Contact resistance: no more than 2.5mΩ under normal atmospheric pressure
Electrical:
• Voltage rating: 125V AC rms
• Current rating: 1.5Amp
• Contact resistance: 100m Ohms (maximum)
• Insulation resistance: 1,000M Ohms (minimum) at 500V DC
• Dielectric strength: 750V AC rms, 60Hz and one minute
Environment:
• Storage temperature: -40 to +85°C
• Operating temperature: -10 to +60°C (ISO/IEC 11801,ANSI/TIA/EIA 568 C.3)
Mechanical:
• Material enclosure: zinc diecast – nickel plated
• Housing material: PC UL94V-0
• Inner material: flame-retardant ABS UL94V-0
• PCB material: FR-4
• Thickness: 1.6mm
• Contact material: phosphor bronze stamp and PIN T=0.35mm
• IDC contact material: phosphor bronze, T=0.50mm with nickel plating
• Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
• Wire: 24 to 26AWG, stranded and solid
• Dimensions (HxWxD): 20x14x34 mm
Specifications:
• Housing: high temperature thermoplastic
• Shell: phosphor bronze protects against EMI/PFI interference
• Contact: phosphor bronze ,phosphor bronze with 3 to 50u” gold plate
• Available in CAT.5E or CAT.6 T568A/T568B wiring, meeting every cabling international requirement
• Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6mm
• Insertion life :MIN 750 matching recycles
• Contact resistance: no more than 2.5mΩ under normal atmospheric pressure
Electrical:
• Voltage rating: 125V AC rms
• Current rating: 1.5Amp
• Contact resistance: 100m Ohms (maximum)
• Insulation resistance: 1,000M Ohms (minimum) at 500V DC
• Dielectric strength: 750V AC rms, 60Hz and one minute
Environment:
• Storage temperature: -40 to +85°C
• Operating temperature: -10 to +60°C (ISO/IEC 11801,ANSI/TIA/EIA 568 C.3)
Mechanical:
• Material enclosure: zinc diecast – nickel plated
• Housing material: PC UL94V-0
• Inner material: flame-retardant ABS UL94V-0
• PCB material: FR-4
• Thickness: 1.6mm
• Contact material: phosphor bronze stamp and PIN T=0.35mm
• IDC contact material: phosphor bronze, T=0.50mm with nickel plating
• Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
• Wire: 24 to 26AWG, stranded and solid
• Dimensions (HxWxD): 20x14x34 mm
